General Introduction

Chain plate conveyor is a specially designed supporting chain plate conveyor for metal crushers, scrap steel crushers, can crushers, waste crushers, and aluminum crushers by Dostar Industry. The transportation of the Dostar plate chain conveyor is stable, and different width specifications of the chain plate conveyor can be selected according to the production site situation. Dostar plate chain conveyor adheres to independent innovation and meets the needs of more customers. Chain conveyor, also known as forging conveyor belt, conveyor belt, chain conveyor, chain conveyor, conveyor transmission rack, assembly line, automated conveyor line, forging material conveying machinery.

Working Principle

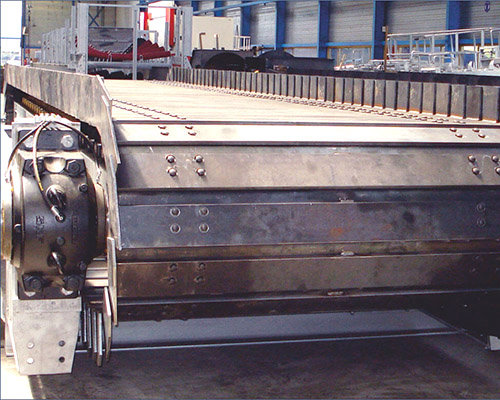

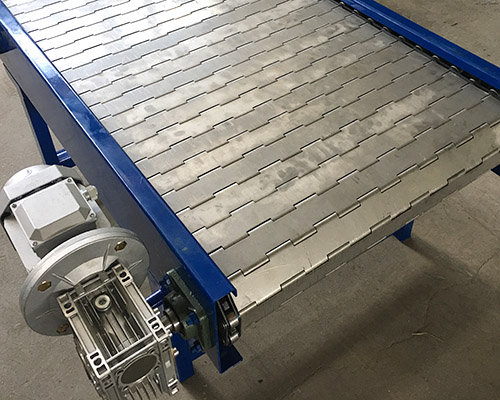

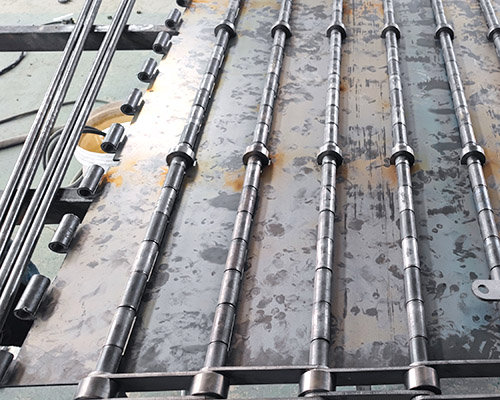

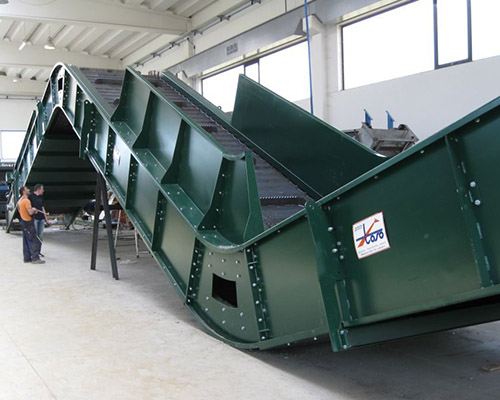

Plate chain conveyor is a conveying device that uses standard chain plates as the load-bearing surface and is powered by a motor reducer. Chain plate conveyor is composed of power unit (motor), transmission shaft, drum, tensioning device, sprocket, chain, bearing, lubricant, chain plate, etc. The two main parts of conveying animal feed are: the chain, which uses its cyclic motion to provide traction power; The metal plate serves as the carrier during the transportation process. Complete the work of material transportation. It has the characteristics of stable operation and convenient installation, and is common in the production of metal crushers.

Equipment Advantages

1. The length, width, height, and speed of the chain conveyor are not limited by the site.
2. The weight, size, temperature, and shape of the transported object are not subject to subjective factors.
3. The operating speed and adjustable range of the conveyor belt.

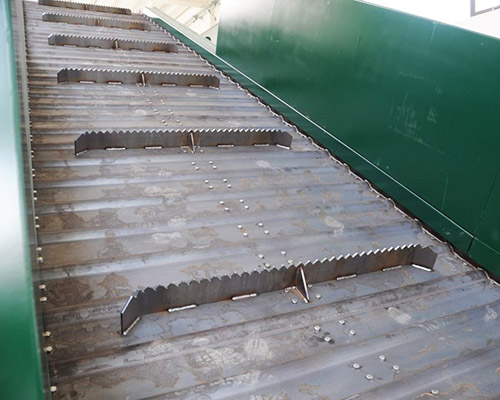

4. Transportation form: straight line, climbing, turning, lifting, etc.
5. It can be selected according to the conveying materials and process requirements, and can meet the different processing needs of various industries.

Equipment price and model

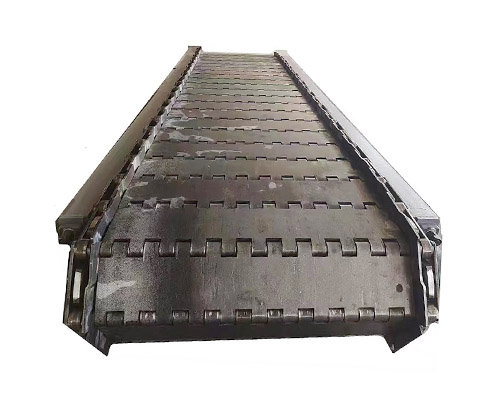

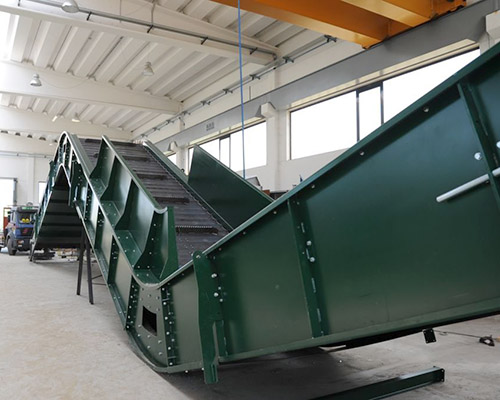

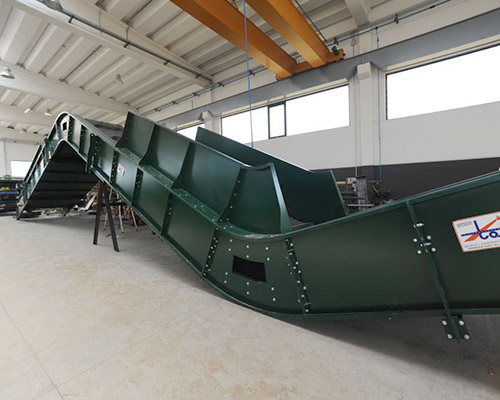

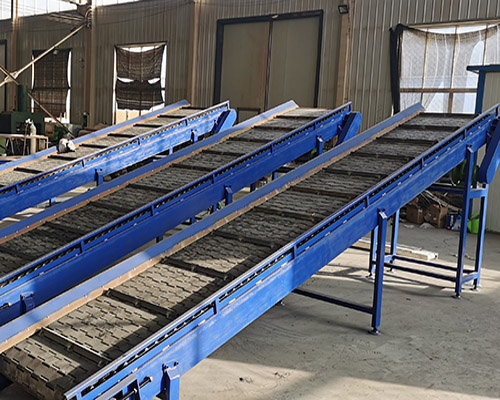

The chain conveyor is designed into hinge chain conveyor, flat top chain conveyor, channel steel partition chain conveyor, and multi piece chain conveyor based on the actual situation of materials and customer needs. The forging chain conveyor can be made into a horizontal direct conveyor, a lifting and climbing conveyor, and a turning conveyor. The length of the chain conveyor is customized according to customer needs, with an adjustable range of 0.025 meters to 60 meters per minute. The conveyor height is adjustable, usually within a range of 15 centimeters.

LET ME KNOW

Material to be processed: ______
Material temperature: ______℃
Bulk Density: ______t/m3
Handling capacity: ______t/h
Working environment temperature: ______℃
Working power supply: ______V ______HZ
Max. granule size of the feeding material: ______mm
Max. granule’s percentage in whole material: ______%
Center distance between the head and tail sprocket: ______m
The pan conveyor is inclined or not: ______(Yes or No)
If it is inclined, what is the inclined degree______°
Upstream equipment (Ps. It means what kind of equipment is used to feed the material):______
Downstream equipment (Ps. It means what kind of equipment is used to discharge the material):______
Whether needing supporting equipment?______(Yes or No)
Quantity: ______
